Bay & Bow Windows

Bay & Bow Windows in Greenacres, FL | TruePane Windows & Doors

Bay and bow windows do something no flat window can: they push the room outward, add usable interior square footage, and open up sightlines across multiple angles at once. In Greenacres, where hurricane code is part of daily life, you can’t just frame a projection and hope for the best. The structure has to carry real wind load, the glass has to hold under impact, and the opening has to be sealed so Florida rain stays outside where it belongs. TruePane Windows & Doors fabricates and installs impact-rated bay and bow configurations through our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines. Call (754) 339-0784 to schedule a free on-site measurement in Greenacres.

Call (754) 339-0784

Product Overview - Bay & Bow Windows

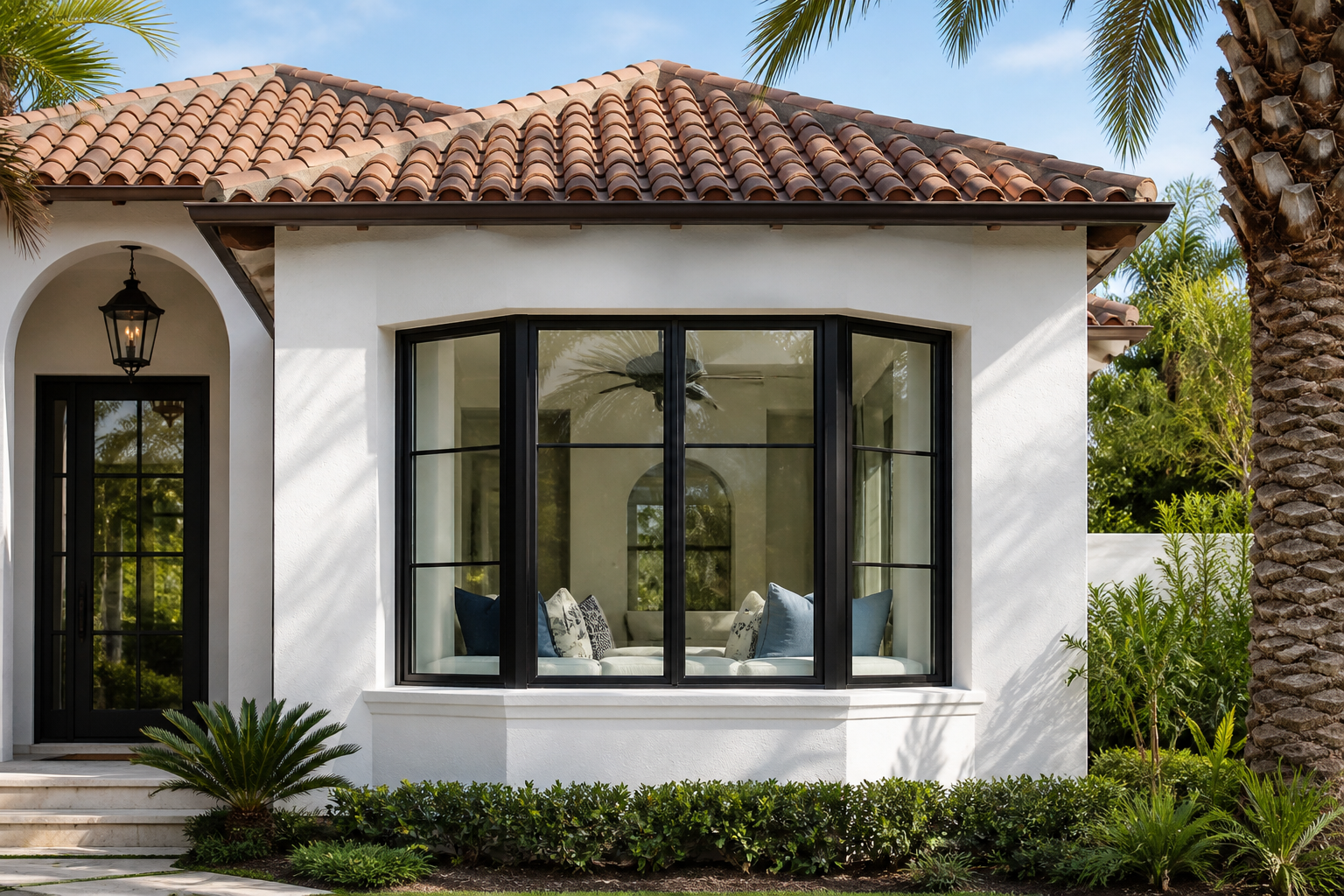

Bay windows are typically a three-panel projection: a wide center picture unit flanked by two angled operable or fixed panels, usually set at 30 or 45 degrees. Bow windows use four to six narrower panels set at shallower angles, creating a gentler arc. Both profiles project past the exterior wall and add a shelf of interior floor space, which Greenacres homeowners often use for a reading nook, plant ledge, breakfast bench, or just a place the dog can watch the street. The difference between the two comes down to geometry: bays feel more angular and architectural, bows feel more curved and panoramic.

What makes this profile genuinely suited to hurricane-prone construction isn’t the projection itself but how it’s engineered. A projecting window catches wind from multiple directions at once, so the frame and glass package have to work as a single structural unit. Our impact bay and bow configurations use laminated impact glass with a PVB interlayer that holds the glass in the frame under impact, set into aluminum or vinyl frames custom fabricated to the opening. We don’t take a stock flat-window frame and force it into a bay. The projection is designed, fabricated, and installed as one assembly, matched to the design pressures for your specific wind zone in Greenacres.

These windows make the most sense in living rooms, dining rooms, and primary bedrooms where a single flat window leaves a dead corner. If you’re in Greenacres and want a window that actually changes the shape of the room rather than just filling a hole in the wall, this is the profile.

Technical Specifications

Because these windows are fabricated to the opening, the size range is determined by the structural limits of your specific configuration and wind zone rather than a fixed catalog cut sheet. The seat/shelf sill option is worth a close look if you plan to use the interior projection as actual usable space in your Greenacres home.

Hurricane & Compliance Performance

Laminated Impact Glass
Laminated impact glass with a PVB (polyvinyl butyral) interlayer holds the glass in the frame under impact. When debris hits, the glass may crack, but the interlayer keeps the pane intact so wind and water don’t enter your Greenacres home through a shattered opening.

Miami-Dade NOA / Florida Product Approval
Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers are issued per configuration, so the exact number depends on the size, frame, and glass package you select. We provide the correct approval documentation for your specific bay or bow configuration with your quote, and you should verify it on your specific quote.

FBC/HVHZ Compliance
Every configuration we sell is engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements. That’s the stricter standard, and it’s what governs much of Palm Beach County including Greenacres.

TAS 201/202/203 Testing Context
HVHZ-rated products are tested under a specific protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These are the tests that prove the product performs the way the approval says it will.

Design Pressure for Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100 - never higher. We don’t oversell a rating you don’t need, and we also don’t install anything below what your specific Greenacres location requires.

Energy Performance
Low-E and insulated glass options are available for energy performance. If your bay or bow faces west or east in Greenacres, the Low-E option makes a meaningful difference in afternoon heat gain through all that angled glass.

Color & Glass Options

Finish options include White, Almond, Bronze, Black, and Tan. For Greenacres homes, the right choice usually depends on your exterior palette and interior trim. White and Almond are the most common because they work with the clean, bright interiors most local homeowners want. Bronze and Black read more contemporary and hold their own on Mediterranean or modern elevations you see throughout central Palm Beach County. Tan splits the difference when you want warmth without going dark.

On the glass side, Clear laminated impact glass keeps sightlines as pure as possible, which matters on a bow window where the whole point is the view. Tinted glass cuts glare and solar heat, useful on projections facing the afternoon sun. Low-E insulated glass adds a thermal break and is our usual recommendation when the window faces open sun or you’re sensitive to heat gain. The laminated impact glass with PVB interlayer is the non-negotiable base layer for every bay and bow we sell in Greenacres; everything else is about comfort and aesthetics.

Installation by TruePane Windows & Doors in Greenacres

A bay or bow window is a structural change to your Greenacres home, not a glass swap. The projection carries weight, catches wind, and has to shed water at multiple plane changes. If the head and seat boards aren’t tied correctly to the framing, or the perimeter seal fails, the whole assembly leaks and the NOA-rated glass doesn’t matter. We’ve rebuilt enough poorly installed bays in Palm Beach County to know exactly what failure looks like from the inside.

Our installation process starts with a pre-install inspection of the rough opening, header, and existing framing. The new projection gets set level, plumb, and square, which on a bay or bow means checking every mullion and angle, not just the top corners. We follow AAMA 2400/2410 installation practice, which covers proper flashing, shimming, and anchoring for window installations. The perimeter gets sealed with AAMA 812 low-expansion foam and exterior sealant, then we run a final water test before we call the job done.

Greenacres permitting adds an extra layer you should know about. Depending on your home’s exposure category and the structural support the projection needs, the job may involve an engineered header or additional tie-downs. We handle the permit documentation, including Florida Product Approval or Miami-Dade NOA submittals, so the paperwork matches the physical work. Improper installation compromises the NOA-rated system, and no homeowner should carry that risk.

Frequently Asked Questions - Bay & Bow Windows

What wind zone or design pressure is the Bay & Bow Windows rated for?
Design pressure is matched to your specific wind zone, up to +/-100. Your exact rating depends on the size, configuration, frame material, and glass package, and we verify it against your Greenacres property’s exposure category before we fabricate anything. Call (754) 339-0784 for a pressure calc on your opening.

What is the lead time?
Because every bay and bow is fabricated to the opening and the glass is cut to the specific panel dimensions, lead time runs longer than a stock single window. We give you a written lead-time estimate with your quote, and we keep you updated if the glass line shifts. The earlier you start the measurement process, the smoother the scheduling.

Does it require a Miami-Dade NOA or Florida Product Approval submittal for my permit?
Yes, in most Greenacres permit applications involving impact windows, you’ll need either a Miami-Dade NOA or a Florida Product Approval number that matches your exact configuration. The approval documents are issued per configuration, so a number for one size or glass package doesn’t cover a different one. We provide the correct submittal package for your specific quote, not a generic cut sheet.

Can I customize the size or configuration?
Yes. These are custom fabricated to the opening, which means the number of panels, the angle of the projection, the operable-versus-fixed mix, and the depth of the seat board get sized to your wall and your intended use. We work from your opening dimensions, not a warehouse stock list.

How do I maintain the frame?
Wash the frame with mild soap and water, inspect the perimeter sealant annually for cracking or separation, and keep the weep holes clear of debris. On bay and bow assemblies, also check the underside of the projection after heavy rain, since that’s where a developing leak shows first in Greenacres’s wet season.

Get a Quote - Bay & Bow Windows in Greenacres

If you’re considering a bay or bow window in Greenacres, start with a free on-site measurement. We’ll assess the opening, discuss configuration options and glass packages, and give you a written line-item quote with the correct wind-zone rating and approval documentation for your permit. Call TruePane Windows & Doors at (754) 339-0784 to schedule your free estimate.

Written by the team at TruePane Windows & Doors, serving Greenacres, FL with impact-rated window and door installations.
