VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Greenacres, FL | TruePane Windows & Doors

The VLX 100 bifold door is an accordion-style aluminum system that folds panel over panel and stacks neatly to one side, opening an entire wall to your patio, pool deck, or backyard. Homeowners in Greenacres choose it when they want the line between living room and lanai to disappear. TruePane Windows & Doors is an authorized ViewLux installation partner, which means we order directly from the manufacturer, install to AAMA standards, and keep your warranty fully intact. If you’re pricing out a wall-to-wall opening in Greenacres, call (754) 339-0784 for a free project estimate.

Call (754) 339-0784

Product Overview - VLX 100 Bifold / Folding Door

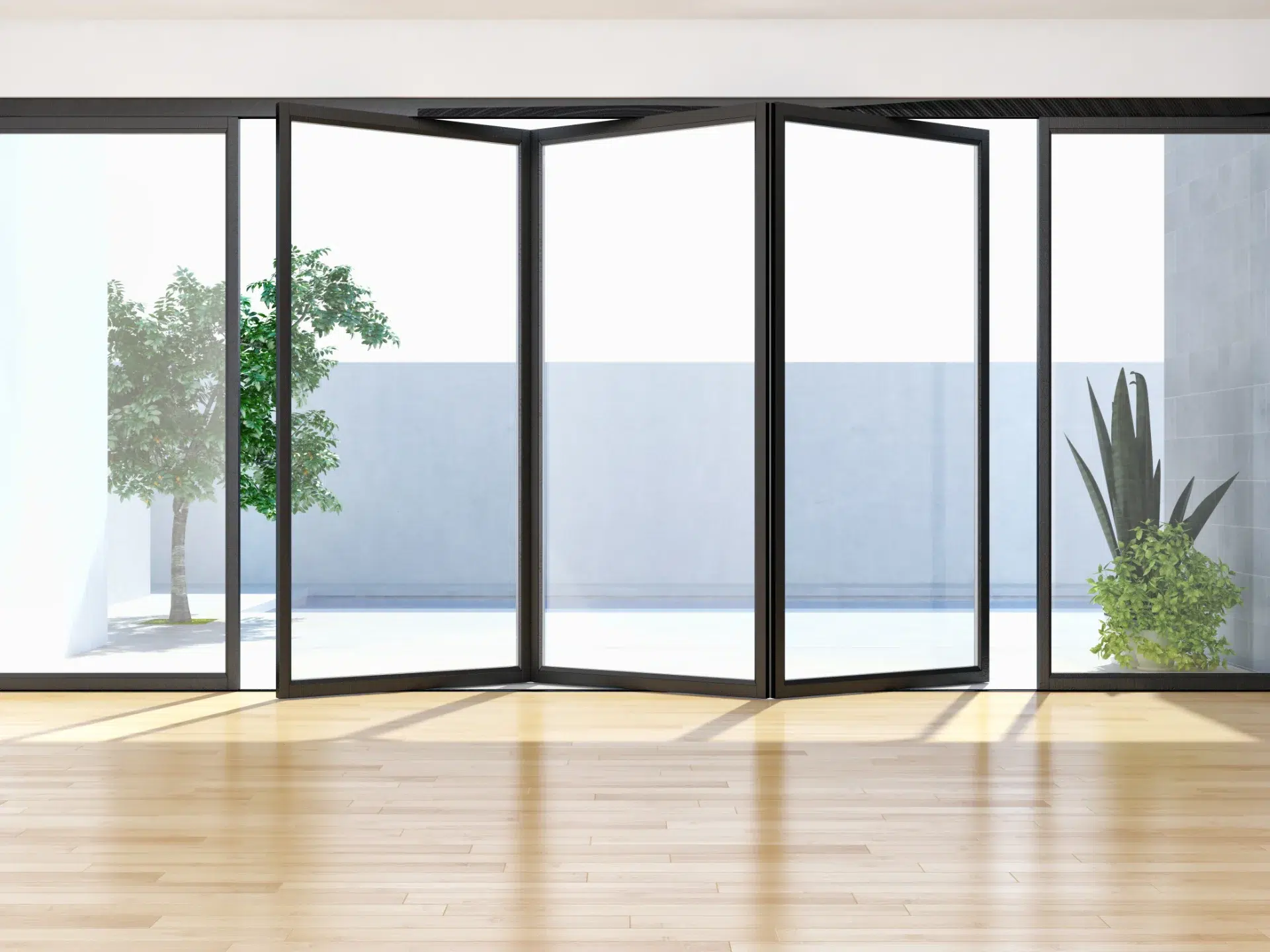

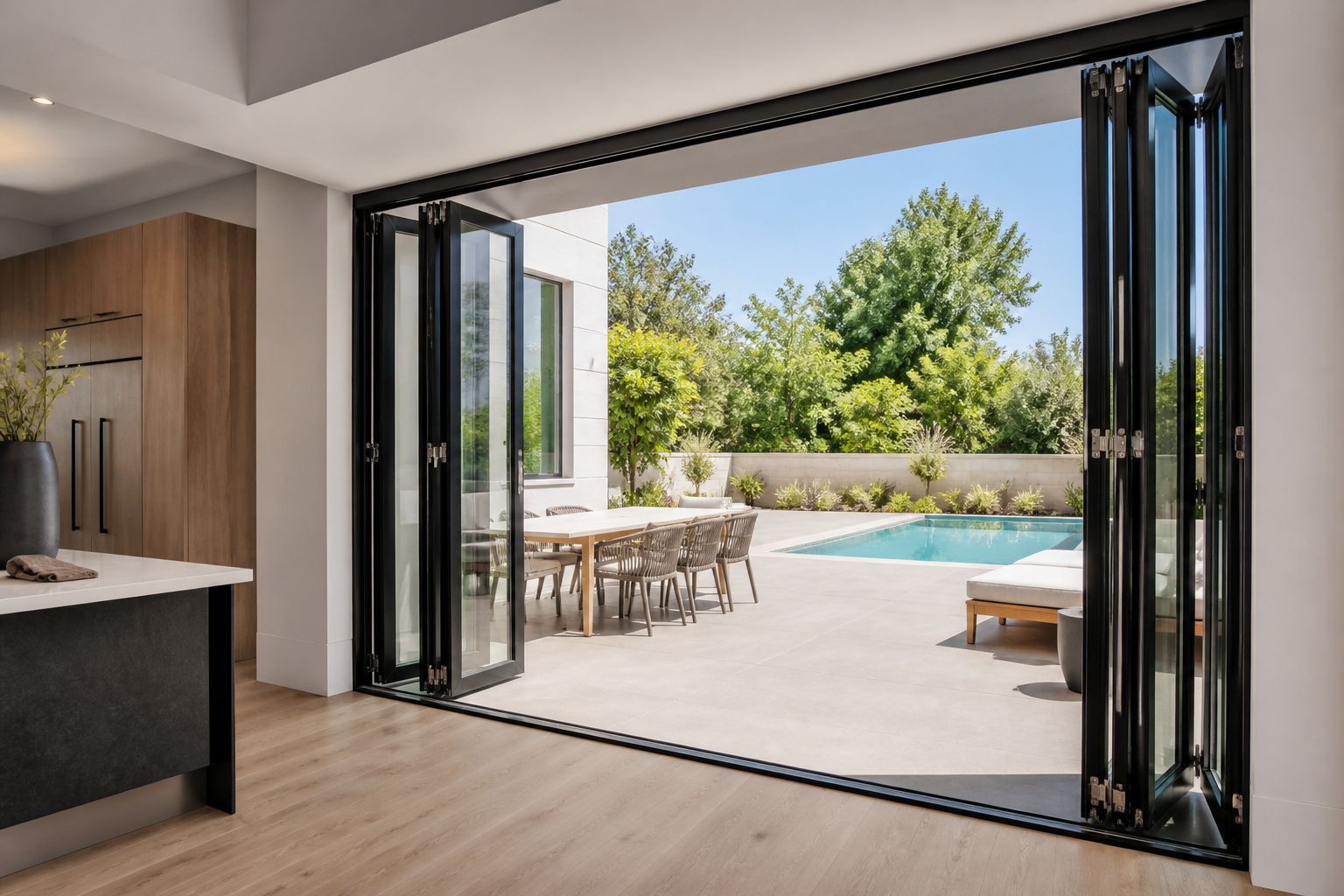

The VLX 100 was designed for one job: replacing a fixed wall with a moving one. It’s a true bifold system, not a sliding door with extra panels. Each panel folds against the next on a track, and the whole assembly stacks to one side or both sides, depending on your opening and panel count. When closed, it reads as a tall, clean glass wall. When open, it leaves almost nothing between you and the outdoors.

This is the door style Florida architects have been pushing for years, especially in homes built around a pool or outdoor kitchen. In Greenacres, where we get ten months of weather that begs for open air and two months where you want a tight seal against heat and rain, a properly engineered bifold earns its cost. The aluminum frame won’t warp or swell the way wood does in humidity. The panels are heavy, which is counterintuitive but good: you want mass in a door that spans 20 feet. Light, flimsy panels rattle in wind and sag over time.

Buyers pick the VLX 100 over lower-cost imports because the hardware is built to cycle thousands of times without slop, the rollers adjust in three directions, and the thermal break is real, not cosmetic. TruePane Windows & Doors installs this series in Greenacres regularly, and we can show you units in service if you want to see how they hold up after a hurricane season or two.

Technical Specifications

Here’s what you’re getting, in plain terms. The numbers below come from the manufacturer’s cut sheet for the VLX 100 series.

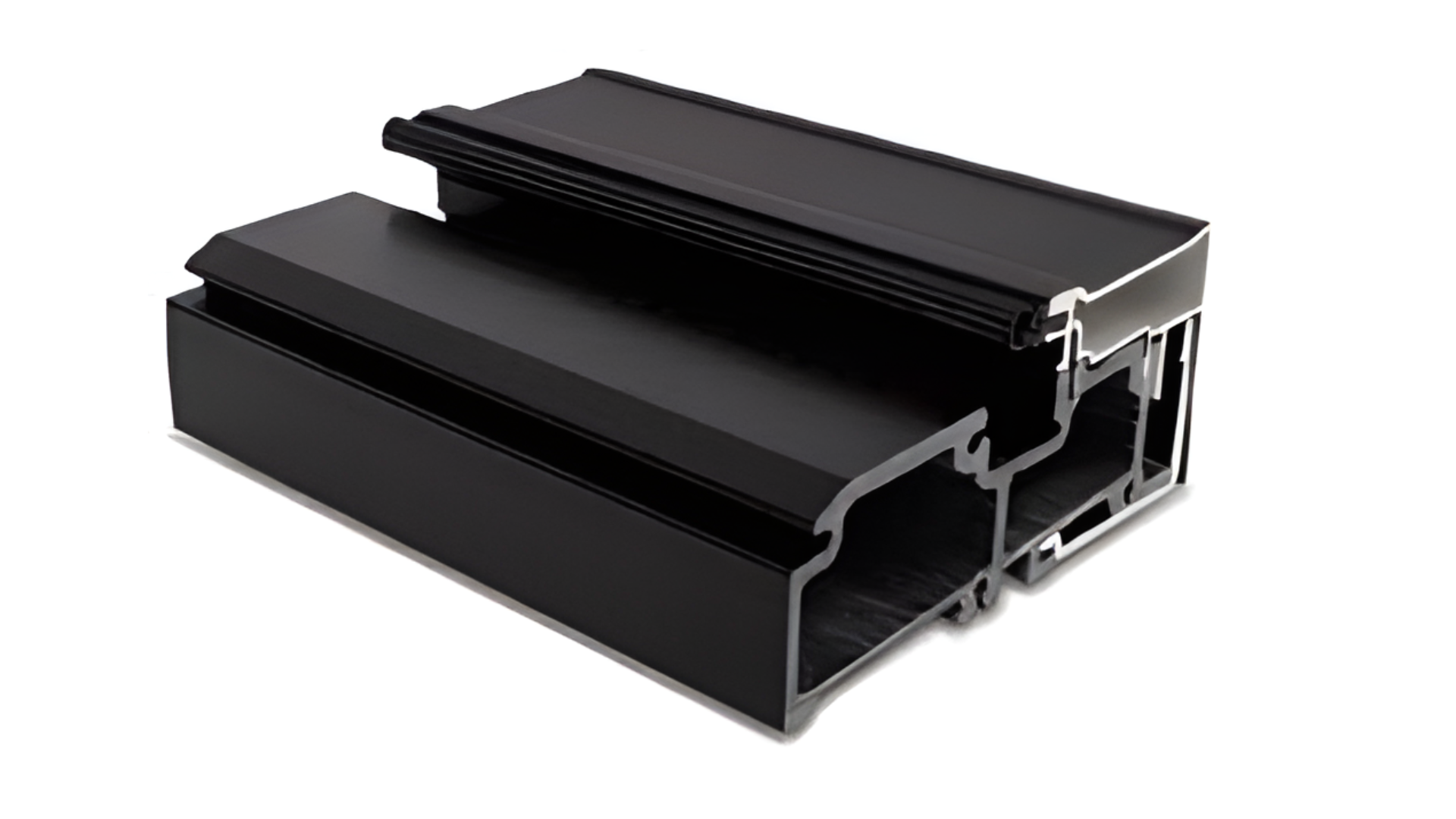

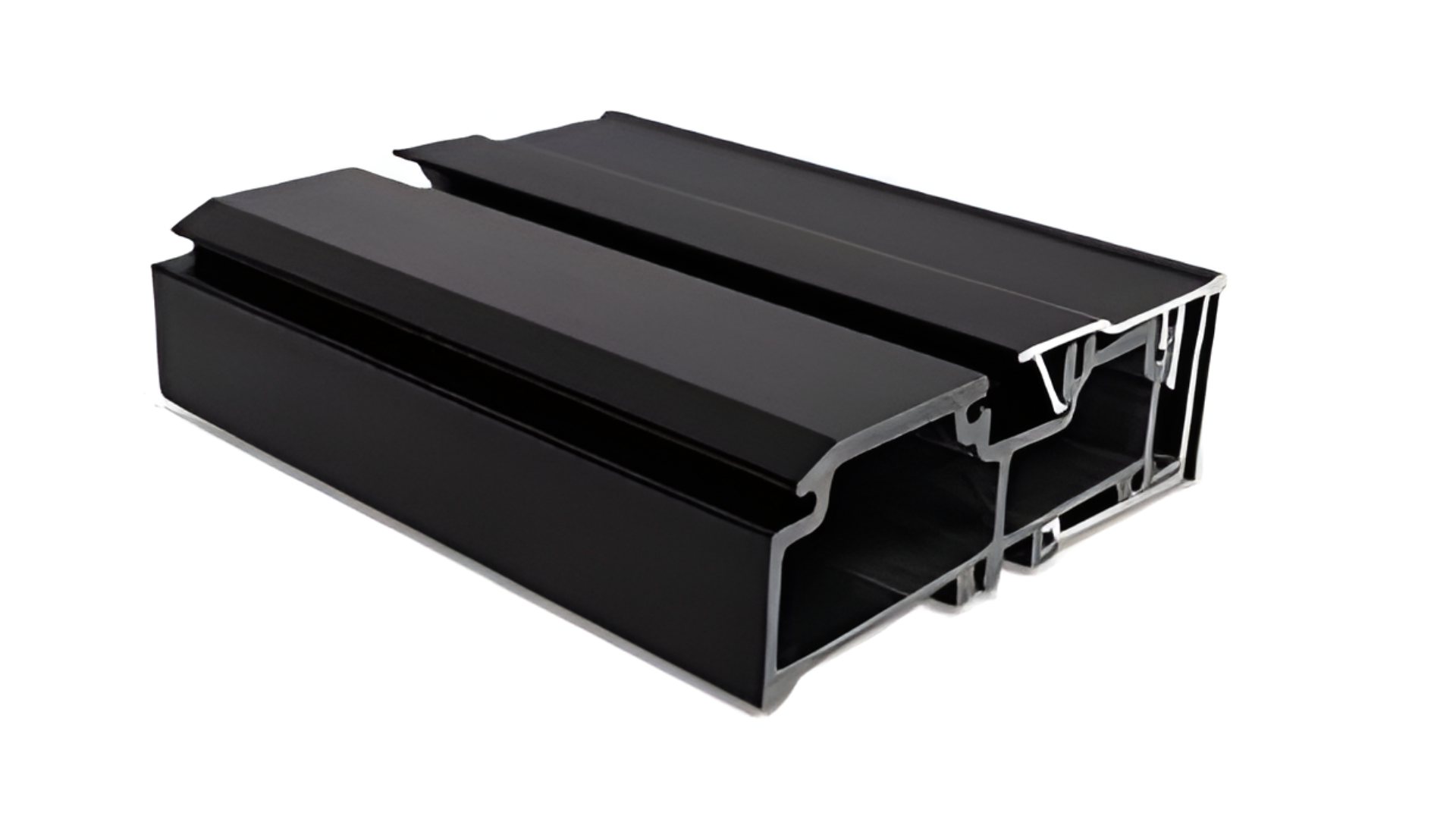

• Frame wall thickness: 0.098″ extruded aluminum
• Profile width: 2.56″ visible frame face
• Maximum span: up to 20 feet in a single opening
• Track configurations: 2, 3, 4, 5, or 6 panels
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or None
• Performance standards: NFRC-rated thermal break, AAMA 2400/2410 installation standard, AAMA 812 low-expansion foam sealant on all perimeter joints

Panel count determines your stacking configuration. A 4-panel track can stack panels to one side, or split into two pairs. A 6-panel track usually splits. We’ll walk through the layout that makes sense for your opening during the free estimate.

Performance Features

Thermal Efficiency
Aluminum conducts heat. Without a thermal break, a metal frame becomes a radiator in a Florida summer. The VLX 100 uses a mechanical thermal break between the interior and exterior frame extrusions, and the assembled unit carries an NFRC energy performance rating. What that means for a Greenacres home: less heat gain through the frame, lower cooling load in August, and a door that qualifies for energy-efficiency rebate programs where applicable. Ask us about Low-E glass pairings to push the rating further.

Acoustic Performance
If your lot backs up to Jog Road or you’re within earshot of 441, you already know Greenacres isn’t silent. Laminated glass in the VLX 100 cuts noise noticeably versus single-pane or thin double-pane. The stacking panels seal against each other when closed, which helps more than people expect. We’ll spec the glass package to your noise reality, not a generic brochure.

Airtightness & Weather Seal
The biggest difference between a cheap folding door and the VLX 100 is how it behaves closed. Each panel locks against the next with a vertical interlock. The sill engages a full-length gasket, not just a brush sweep. The result is a closed unit that holds air conditioning in and humid air out. During our installation, every perimeter joint gets AAMA 812 low-expansion foam sealant, which is the same standard commercial storefronts use.

Waterproofing
Florida rain hits sideways. The VLX 100 is engineered with a sloped, gasketed sill and interior drainage channels that move water out through the track rather than under it. Combined with the AAMA 812 perimeter sealing we perform on every job, the system is built to keep a Greenacres afternoon downpour on the right side of the glass. We water-test every install before we call it done.

Wind Resistance
Post-Hurricane code keeps getting stricter, and Palm Beach County is not a place to skip wind-load requirements. The VLX 100 is wind-load rated for coastal Florida conditions, and the laminated glass option handles impact requirements. Don’t trust a door “similar to” this spec. We verify the exact ratings against your city’s permit requirements in Greenacres before ordering.

Security & Hardware

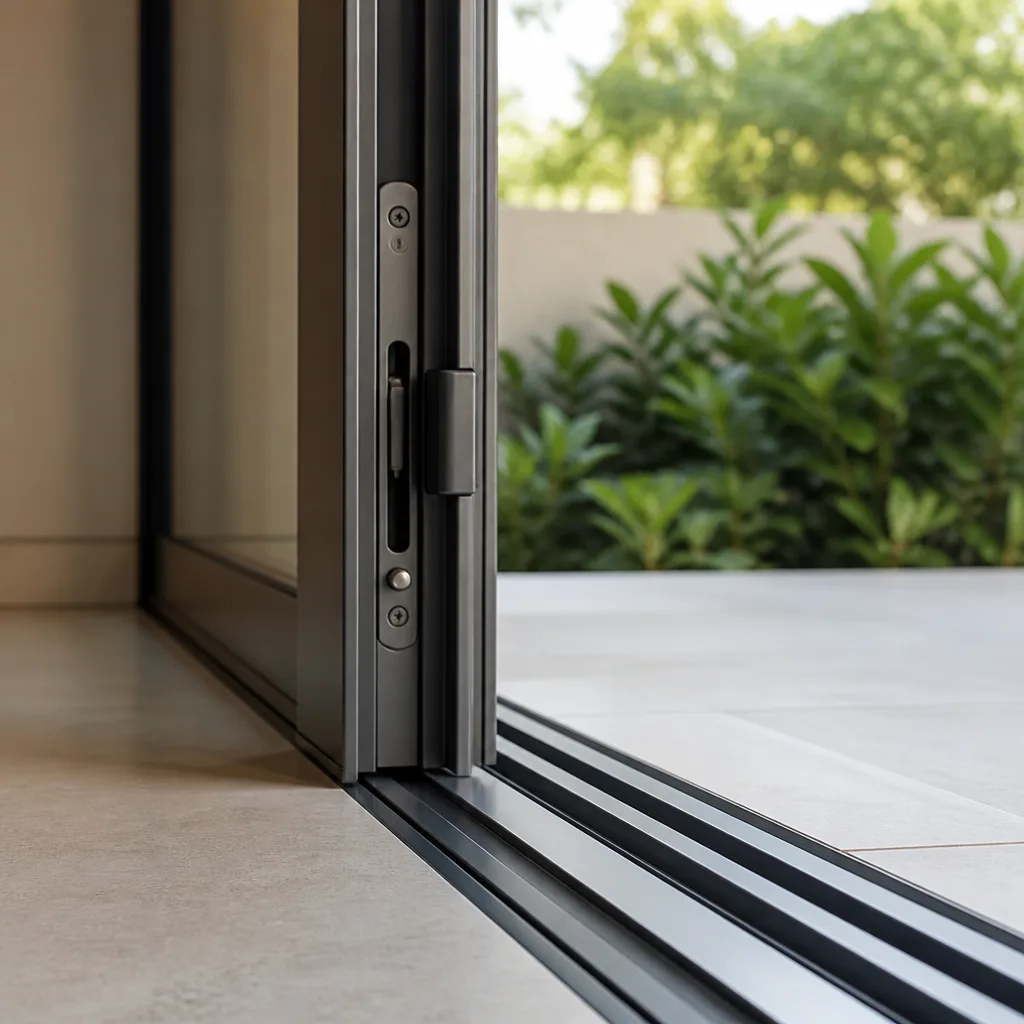

Every panel carries a top and bottom locking bolt. The primary panel uses a multi-point lock that throws rods into the head and sill, not a single latch that flexes under pressure. The hinges are adjustable in three planes, which means the door can be tuned to stay plumb and square years after installation. Laminated glass adds a meaningful layer of forced-entry resistance on top of whatever the standard hardware provides.

Color & Glass Options

The VLX 100 comes in six factory finishes. Premium Black is the current default for modern and transitional homes in Greenacres: it frames the view like a picture window and hides hardware well. Pure White suits Florida mid-century and coastal homes where you want the window wall to disappear into the stucco. Anodized Silver is an honest aluminum finish, low maintenance, and the most forgiving with wear. Bronze reads warmer and works well with terracotta, wood ceilings, and colonial exteriors. Champagne is a softer gold that pairs with warm gray and beige stucco palettes we see throughout Greenacres. Teak Wood is a wood-look powder coat for homeowners who want the warmth of timber without wood’s habit of swelling and rotting in South Florida humidity.

For glass: Clear is the least expensive and makes sense on shaded openings. Low-E is our default recommendation in Greenacres because it fights thermal gain every month that matters. Tempered is safety glass, which code requires in most door applications. Laminated is the impact and noise package. Gray Tint and Black Tint cut glare and add privacy for west-facing walls and pool-facing openings. You can combine options, like tempered Low-E or laminated tinted, depending on what your wall needs.

Installation by TruePane Windows & Doors in Greenacres

Here’s the part that matters more than the door itself. A bifold is only as good as its installation. The track must be perfectly level. The jambs must be plumb and parallel within a fraction of an inch. If not, the panels bind, the hardware wears out early, and the manufacturer warranty won’t cover a door that failed because it was installed wrong. ViewLux warranties the product. The work of getting it square, sealed, and operating smoothly is on the installer. That’s us.

TruePane Windows & Doors has been doing this in Greenacres long enough to know what this climate does to openings. Salt in the air from the coast, afternoon thunderstorms, and settling slab foundations all show up as causes of failed doors when installers cut corners. We don’t cut corners. Our process starts with a pre-install inspection of the rough opening. We check the header, the slab condition, and the width and height at multiple points before the order gets finalized. We install to AAMA 2400/2410 standard, which is the recognized best practice for aluminum fenestration installs. That means level track, shimmed and fastened per manufacturer span tables, AAMA 812 foam on every perimeter joint, and a final water test before we hand you the keys.

We’re also familiar with Greenacres permitting and code. Wind-load documentation, product approvals, and inspections are part of the job, not an add-on. We pull permits where required and schedule the inspections. If the city asks for a product approval number or a wind-load letter, we have it in the file before the permit gets submitted.

Cleanup happens the day of install. Your old door or wall section gets hauled away unless you want it. The track gets wiped down, the glass gets cleaned, and you get a walkthrough of how to operate, lock, and maintain the door. That’s the standard. Call (754) 339-0784 to schedule the free on-site measurement, and we’ll give you a written, line-item quote for the complete project.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

Get a Quote - VLX 100 Bifold / Folding Door in Greenacres

If you’re ready to turn a wall into an opening, start with a free on-site measurement. We’ll bring finish samples, glass samples, and a straight answer on price, timeline, and what your opening needs. Call TruePane Windows & Doors at (754) 339-0784 or ask us to come out during your next visit to Greenacres. The estimate is free, and the quote is line-item and valid in writing.

Written by the team at TruePane Windows & Doors, authorized ViewLux installers serving Greenacres, FL.
